Chill Kube

£2,693.25
£0.00 £2,693.25
Sold out
Tax included.
SKU: CHILL-KUBESKINS&FRAME-2

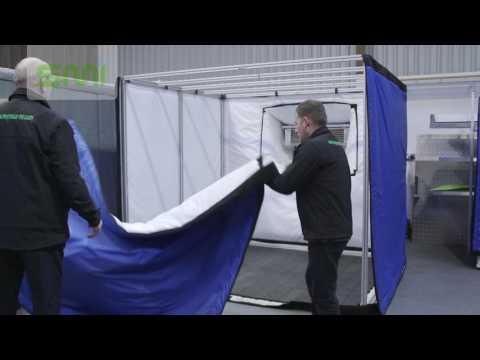

The Chill-Kube is a unique and rapidly deployed chilled module that can be assembled in a very short space of time around its own frame. Made for convenient storage to...

Evaporator & Trolley Included
Vendor: Seymour Manufacturing International Ltd
Category: Products
Tags: Cold Rooms & Flexible Mortuary Units

Shipping & Returns

Shipment Processing time

All orders are processed within 2 - 3 business days. Orders are not shipped or delivered on weekends or holidays.

If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.

View full product details

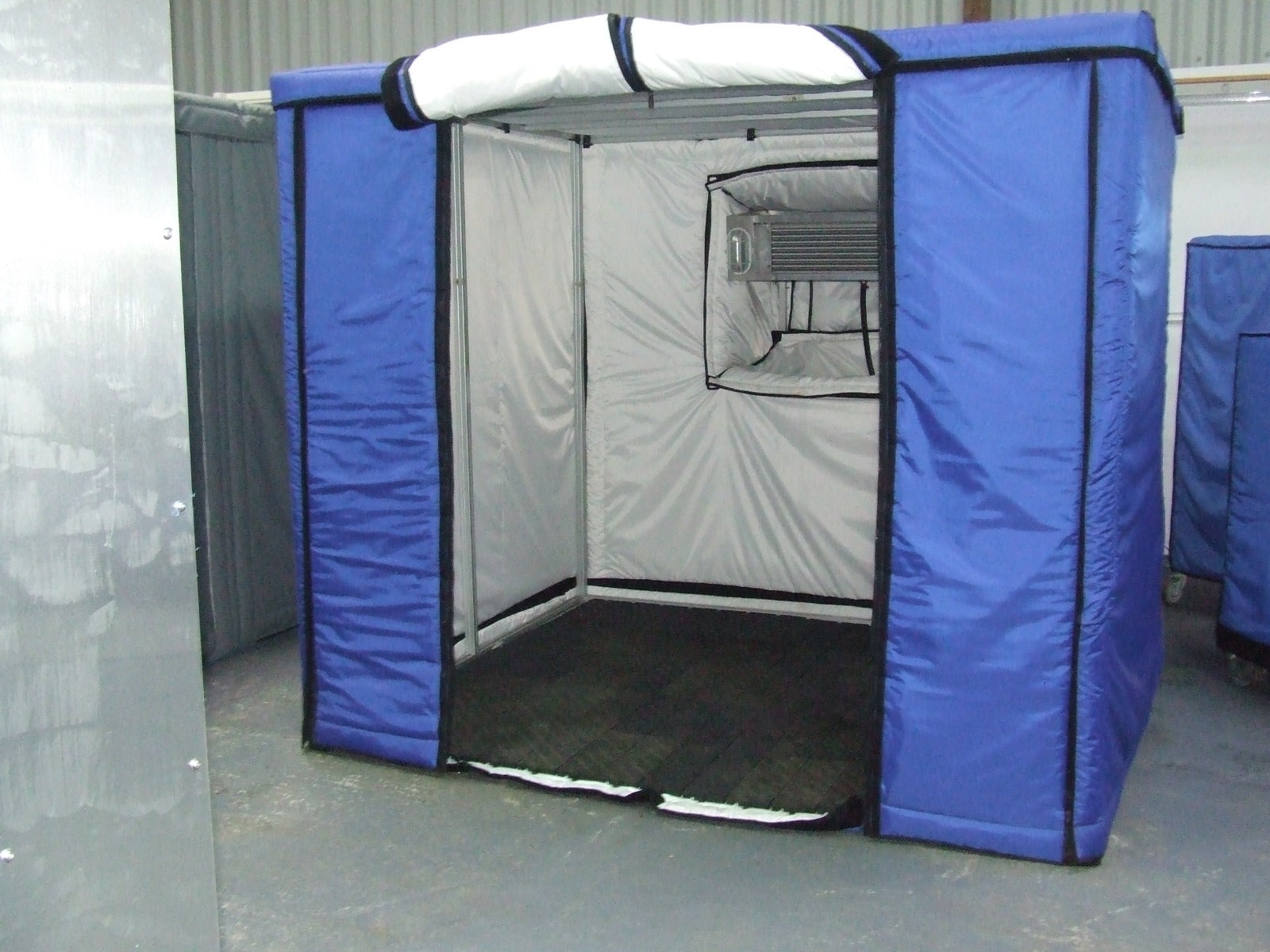

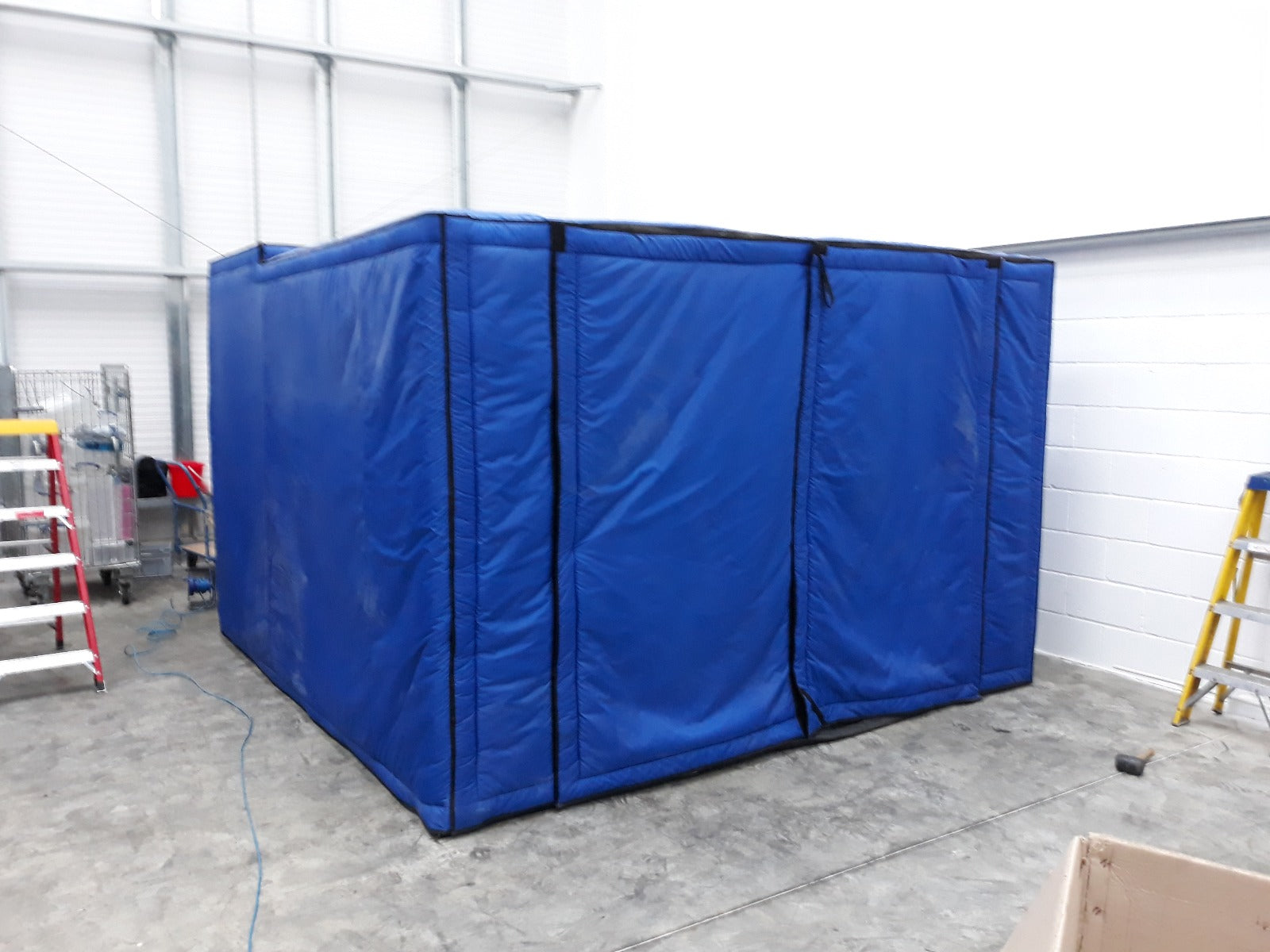

The Chill-Kube is a unique and rapidly deployed chilled module that can be assembled in a very short space of time around its own frame. Made for convenient storage to suit all types and sizes of chilled products on and off pallets.

Technical Specification

The Chill-Kube is quickly cooled, with fast draw down technology (on average in under 15 minutes depending upon the ambient) down to 2°C by a well tried and tested wheeled evaporator designed for the Chill-Kube. It is rugged and runs from a single phase 13 amp supply, also it provides power for the interior LED light.

The Chill-Kube and its evaporator can be delivered easily on any small vehicle or pick-up and can reach areas not normally consider accessible for this type of chilled facility; upper floors via a lift, restricted passageways and open fields. The evaporator can also be powered by a generator. Flexible modular chilled space anywhere anytime.

The Track-Rack shown in the photo is additional accessory which this customer chose to order. Cold-Kube is a similar product with the modular frame from Track Rack. Please see separate page.

  • Can be delivered flat-pack on a pick-up, van or light aircraft and assembled on most sites quickly.
  • Inexpensive to buy and economical to operate.
  • The rugged evaporator is fitted onto a swivel wheeled base and runs from a 13amp supply or generator.
  • Instant extra chilled storage at times of high demand.
  • All parts can be repaired, replaced and recycled.
  • For outside use of a cover is recommended.

External material is Blue 420D PU Nylon. Inner material White 210D PU Nylon.
Insulation grade is TF25 Standard Tempro with an intrinsic thermal resistance of 0.66m2K/W. Tempro is Fire Retardant to BS 5867: Pt 2 1980.

Typical Uses

  • Supermarkets
  • Temporary Chilled Storage
  • Bakeries
  • MOD
  • Chilled Food Storage
  • Outside Events
  • Exhibitions
  • Food Processors
  • Catering
  • Beer Tents
  • Medical Centres
  • Relief Organisation
  • Hotel Functions
  • Emergency Services
  • Wine Merchants
  • Florists

Thermal Information

Below is a table showing the results attained by Campden BRI during testing:

Figures may be improved when Tempro is matched with different face or lining materials or if a heavier Tempro core specification is demanded. Tempro is Fire Retardant to BS 5867: Pt 2 1980.
