Cold Korner

£3,926.19 Exc. VAT
SKU COLDKORNERTRACKRACK

Description

At long last the problem of a lack of valuable chilled space in town centre located stores and shops, or indeed anywhere, has just been overcome with the introduction of SMI’s Cold-Korner™, an instant chill space that can be operational in minutes and folded away just as quick for the same space to be used for other purposes.

Unlike a fixed coldroom, a Cold-Korner™ is only used when required doubling the use of the same area, particularly important when little space is available.

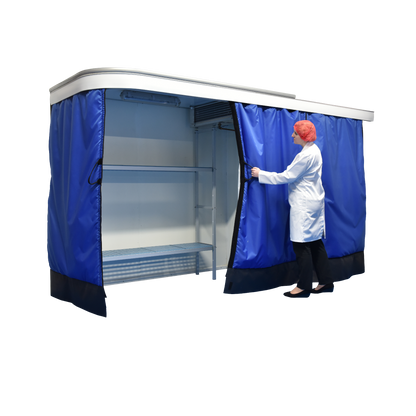

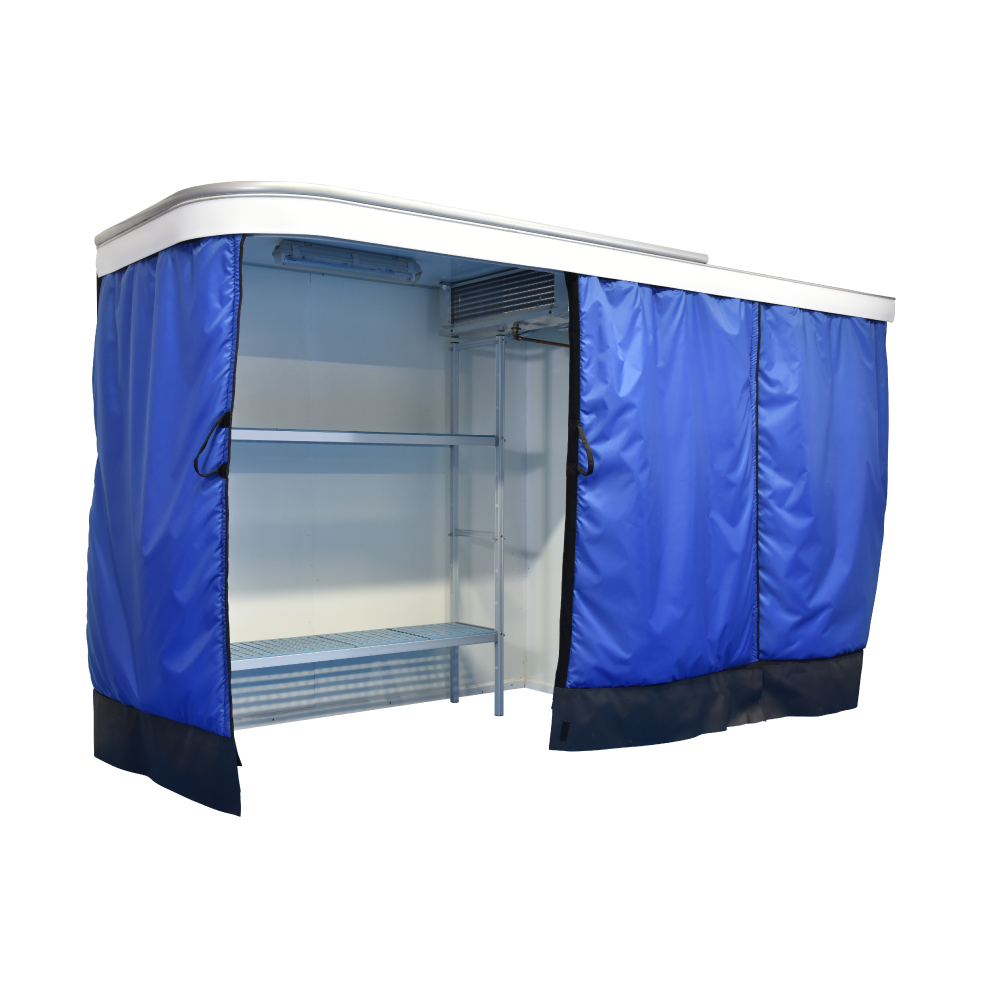

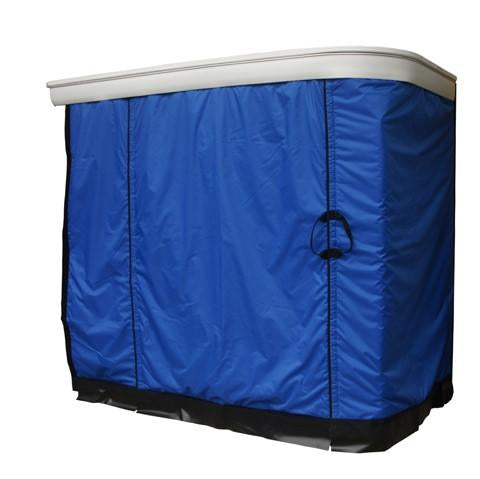

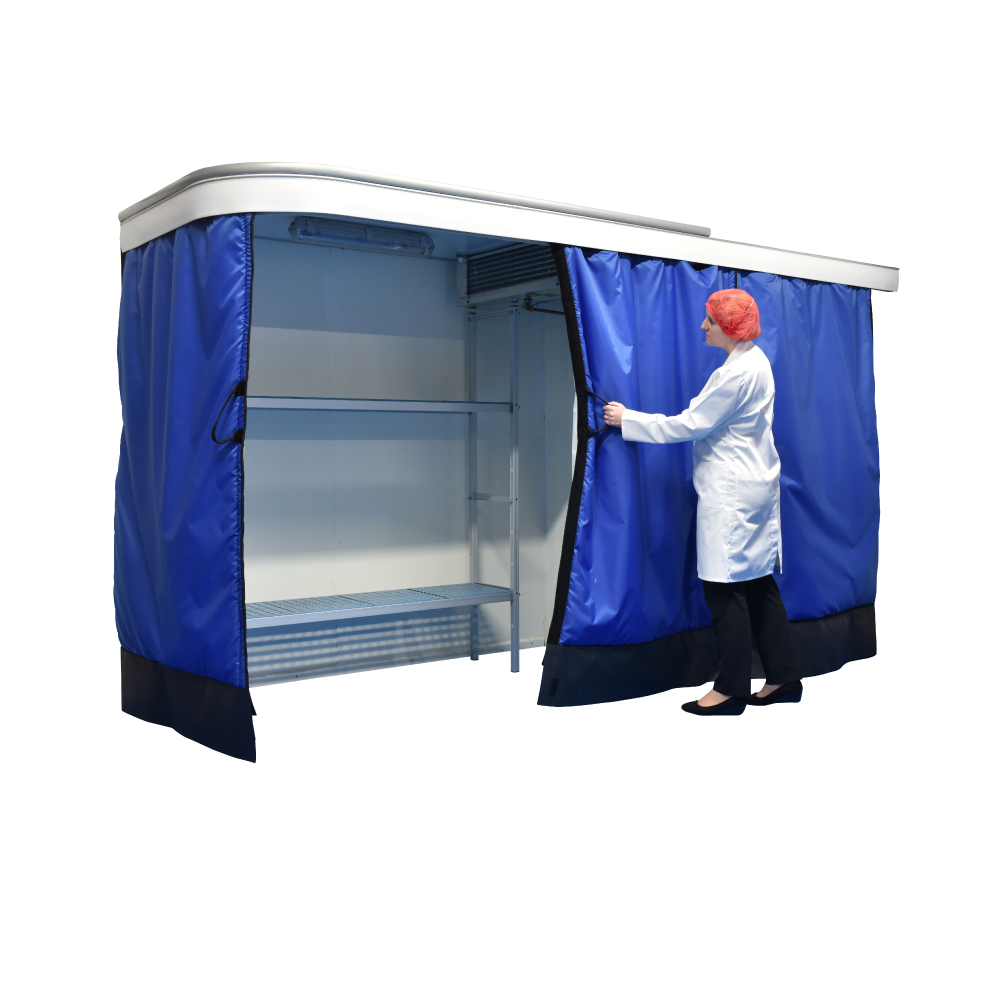

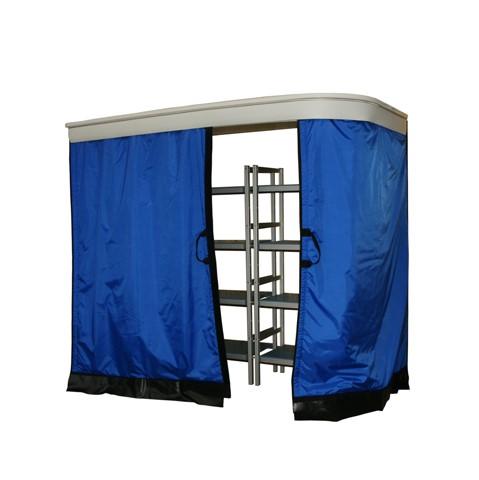

The Cold-Korner™ is simply constructed from a pre-made thermal roof panel which is suspended from a ceiling or wall, often in a corner, Tempro® curtains are fitted on to SMI’s unique track to provide nearly 6 to 7 cubic metres of chilled space which is then chilled by a well tried and tested evaporator designed for the purpose and runs from a 13 amp single phase supply.

A temperature of 2°C is usually achieved in under 15 minutes. The Cold-Korner™ can be made bigger if required.

“The Cold-Korner is a flexible refrigeration solution which has helped us to maximise space” – Waitrose

Thermal Information

Below is a table showing the results attained by Campden BRI during testing:

Figures may be improved when Tempro® is matched with different face or lining materials or if a heavier Tempro® core specification is demanded. Tempro® is Fire Retardant to BS 5867: Pt 2 1980.

Tempro® Technical information and Trial results available.

Technical Specification

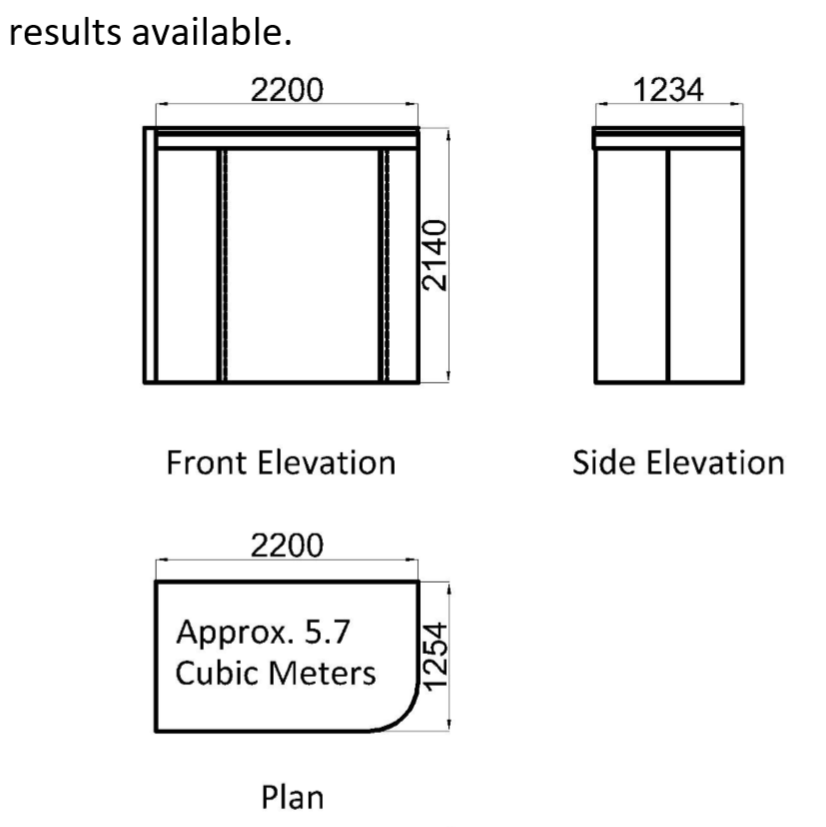

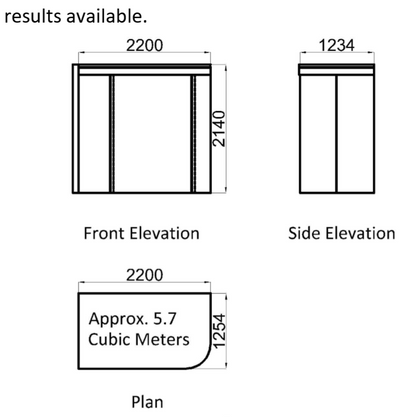

Standard dimensions are 1200mm deep by 2200mm long by 2100mm high.

External material is Blue PU coated Nylon and White PU coated Nylon internally.

Insulation grade is TF25 Standard Tempro® with an intrinsic thermal resistance of 0.66m²K/W.

Document Library

Information Sheet
